HX350MF-S不干胶模切分切机


标准配置·Standard Configuration 图层 138 拷贝.png



设备介绍 图层 138 拷贝.png

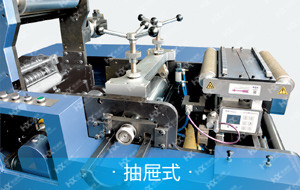

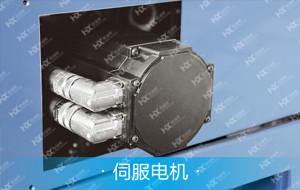

HX350MF-S型双工位圆压圆模切分切机是我公司独立研发的新型设备,本机具有以下特点:双收功能(大卷,小卷)自动上纸,自动纠偏,自动张力和计数,计米,无纸停机,抽屉式更换磁性辊(推拉式),伺服连续收废和排废,伺服米线刀(不同规格无需更换刀轴),无卷收废,整机PLC控制。



PRODUCT INTRODUCTION 图层 138 拷贝.png


HX350MF-S rotary pressing and rotary die cutting & slitting machine is a new type product that we developed. It has below characteristic:double rolling (big roll and small roll) , automatic paper feeding, automatic skew adjustment, automatic tension control, quantity counting, meter counting, non-paper shut-down, drawer type replacement of magnetic shaft(pull and pushing type), servo & continuous waste gathering, servo metering cutter(no need to adjust the cutter shaft for different applications), waste discharge with unreeling roll, entire machine PLC controlled.

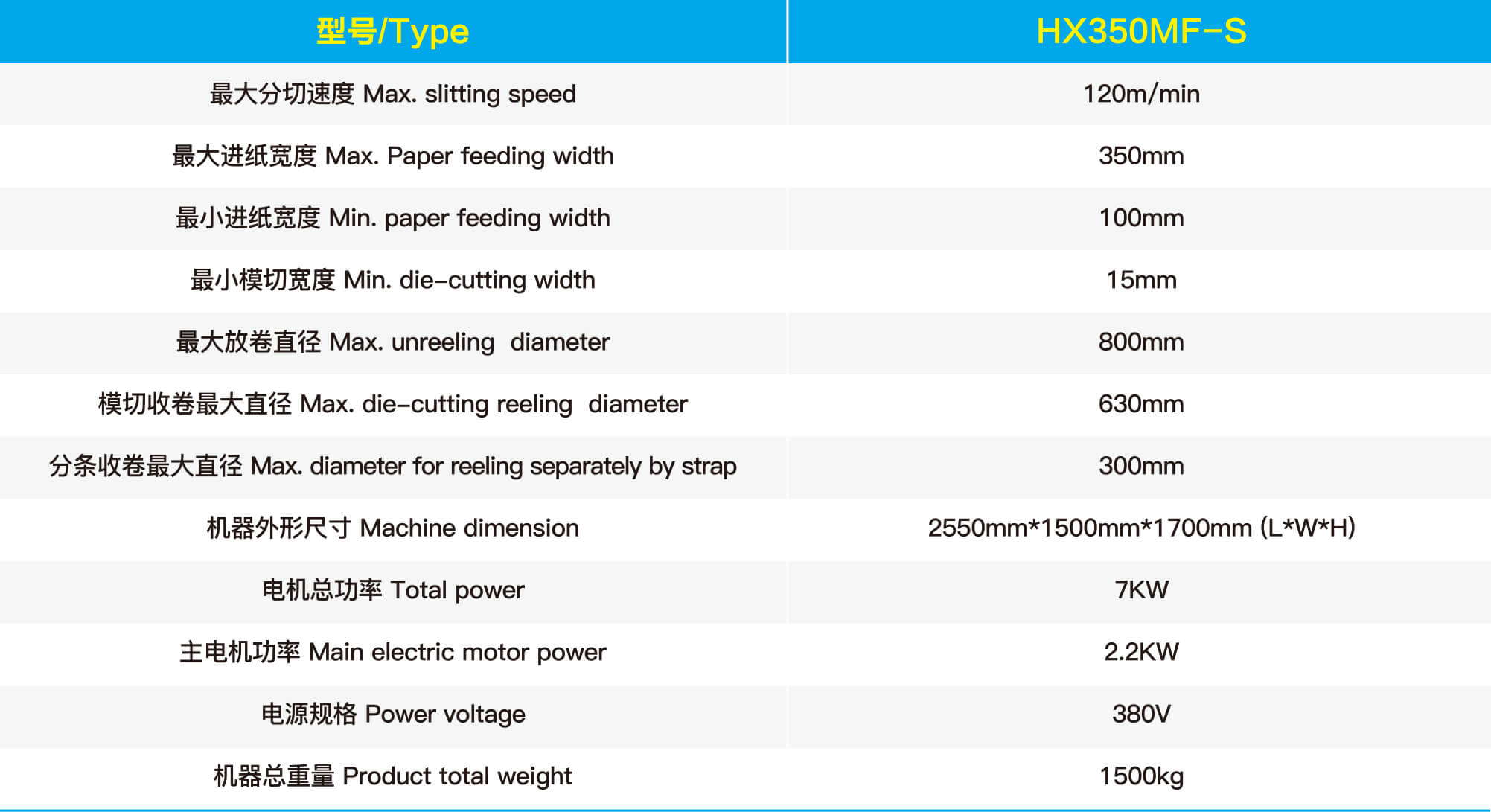

主要技术参数·Specifications 图层 138 拷贝.png



HX350MF
